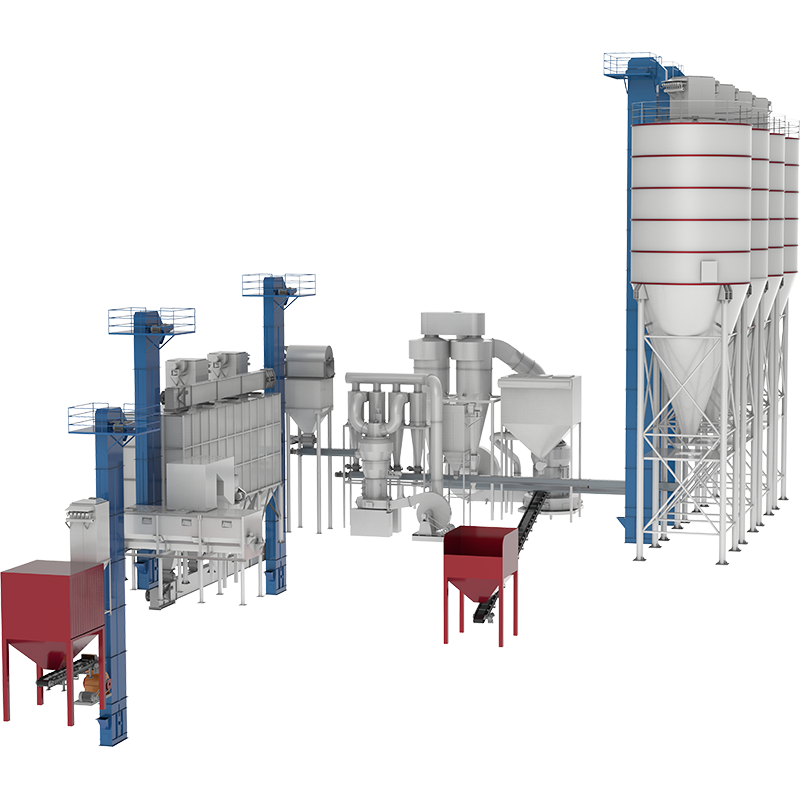

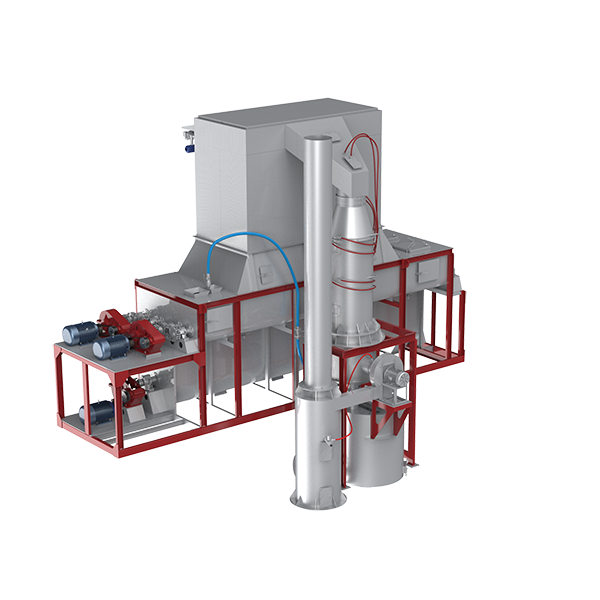

Fully automatic calcium hydroxide production line with precision water & temperature control. Engineered by CRONUS — a subsidiary of Guilin Mining Machinery with 50+ years of manufacturing heritage.
A Legacy of Excellence in Mineral Processing Equipment Since 1973
CRONUS is the international trading arm of Guilin Mining Machinery Co., Ltd., a premier Chinese manufacturer established in 1973. With over 50 years of equipment manufacturing history, our parent company is one of China's earliest and most respected mining machinery enterprises.
Headquartered in Guilin, Guangxi — a region known as the heart of China's calcium carbonate industry — our company has grown from a state-owned pioneer to a modern high-tech enterprise. Today, our lime hydration equipment serves customers across 30+ countries worldwide.

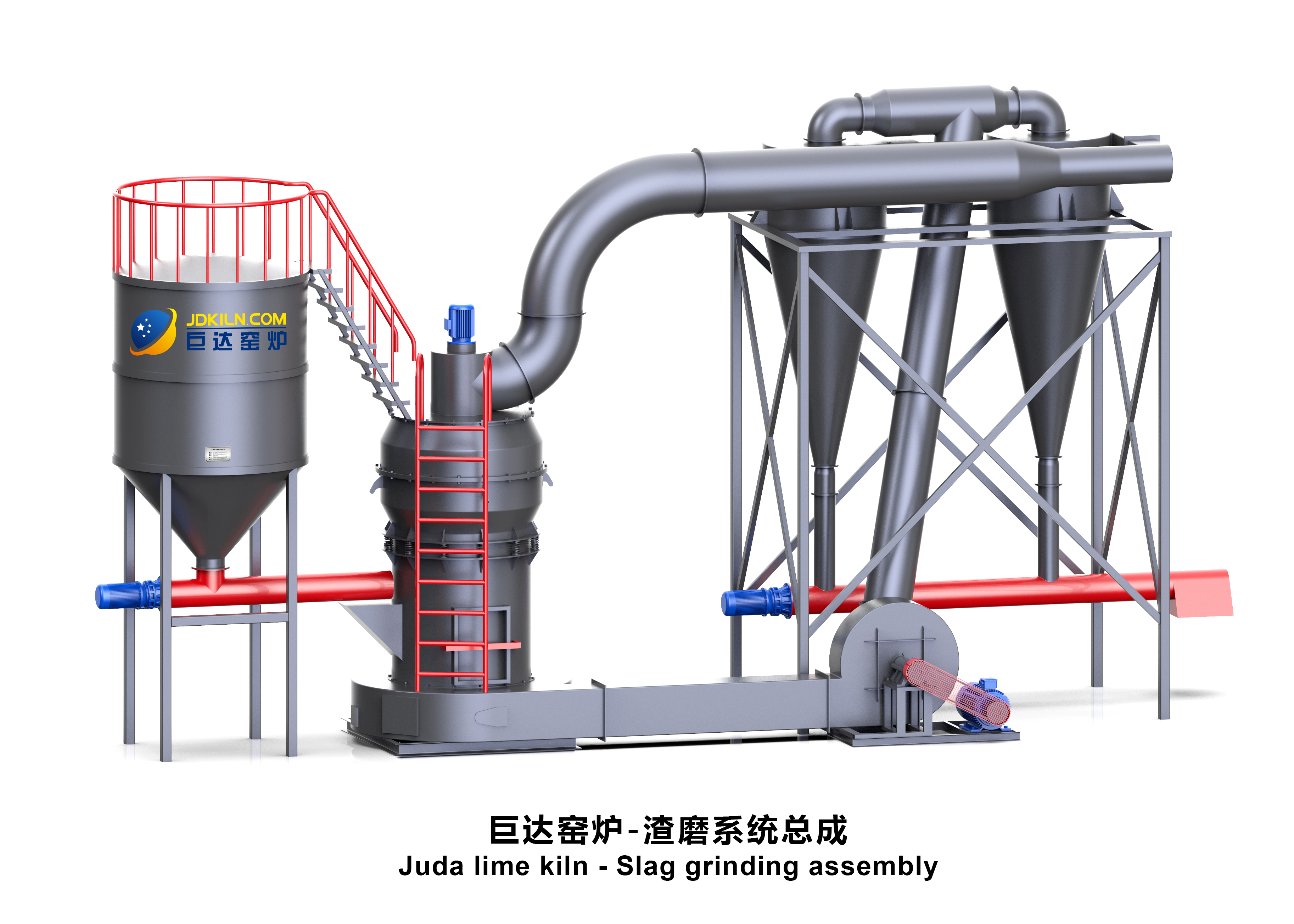

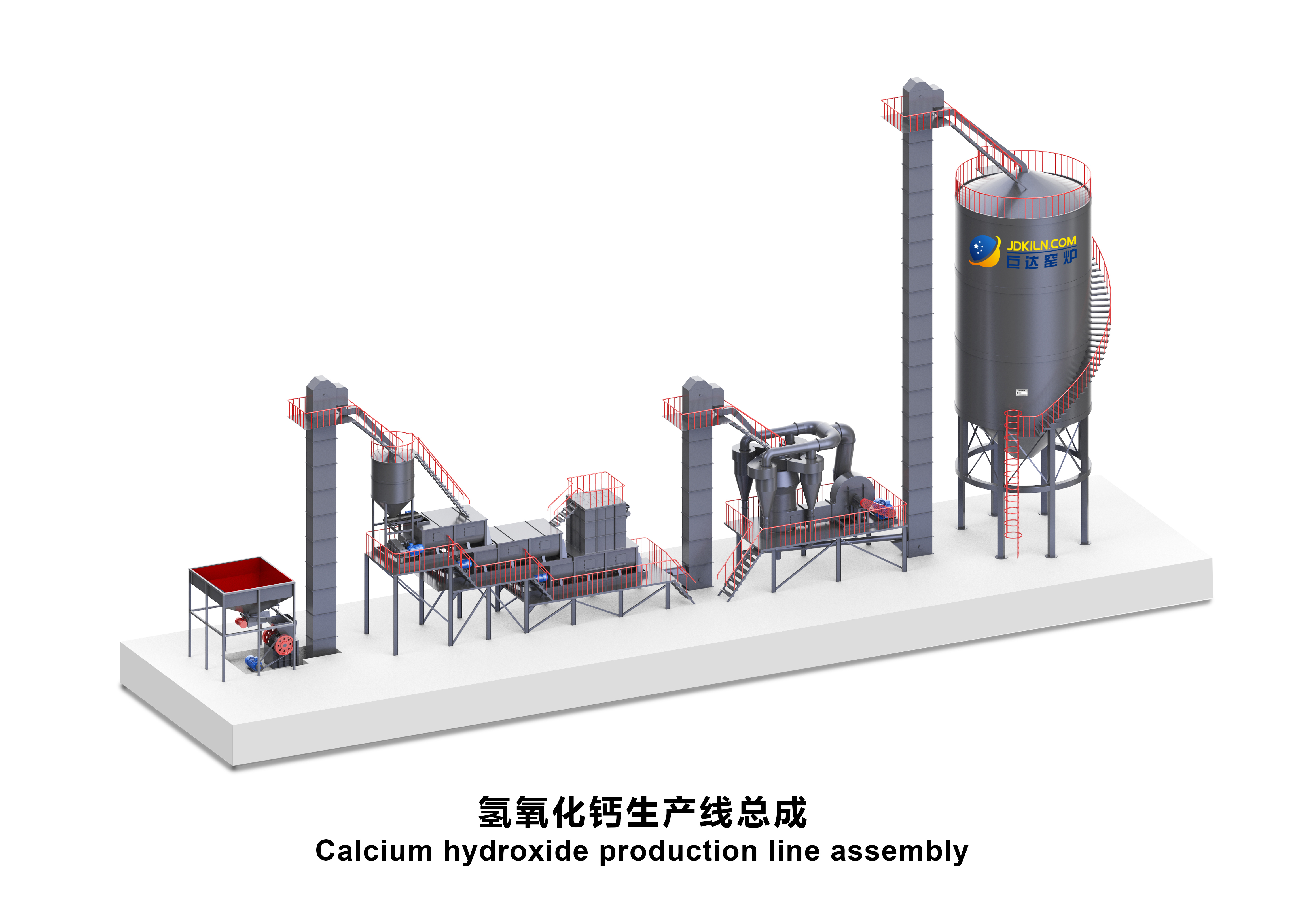

We specialize in complete calcium hydroxide (hydrated lime) production lines, integrating crushing, grinding, classification, hydration, and packaging systems — all engineered in-house for maximum compatibility and performance.

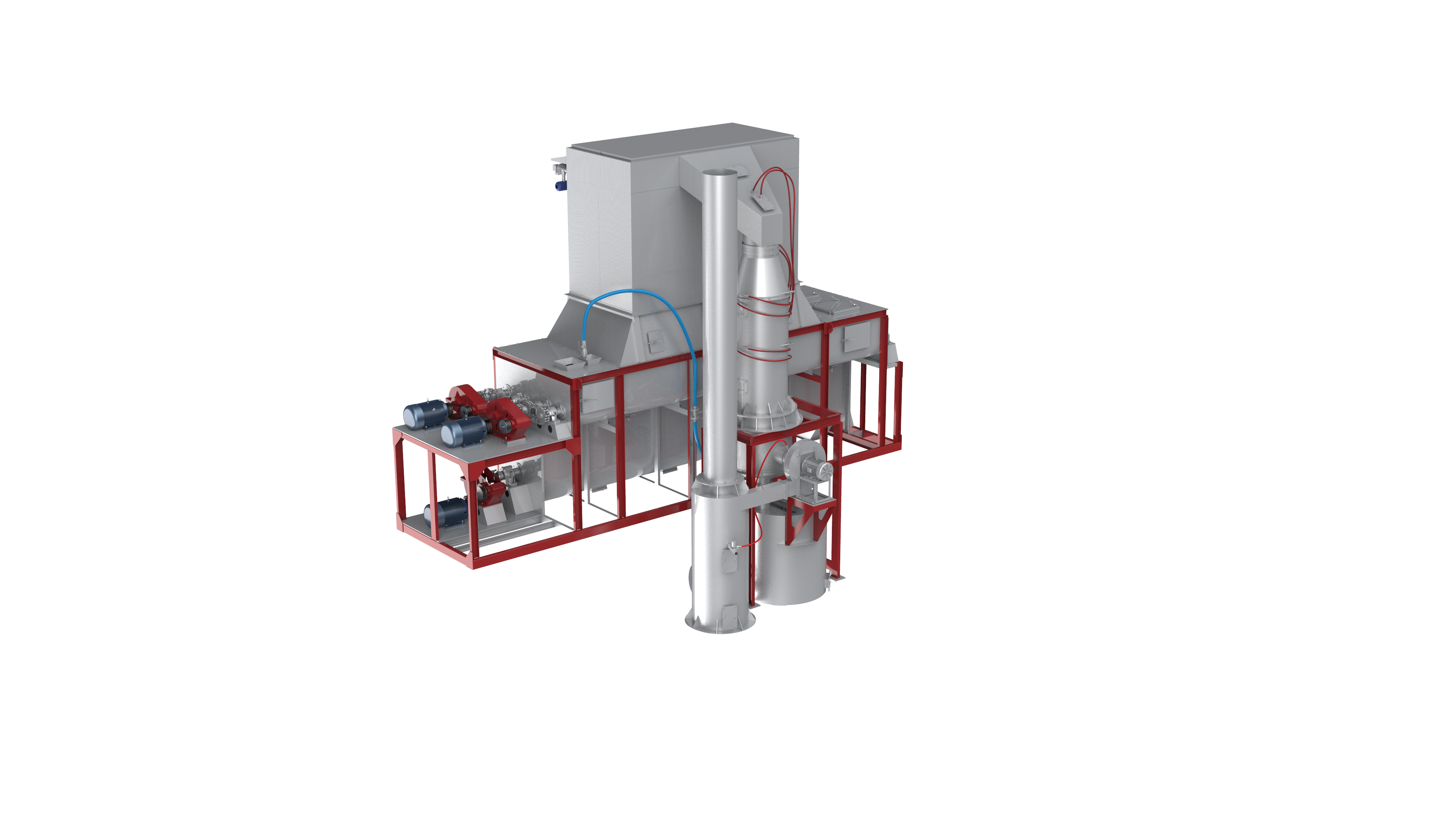

Understanding the science behind our advanced lime slaking technology
Quicklime (CaO) is precisely metered into the slaker through an automated feeding system. Particle size is optimized for maximum reaction efficiency.

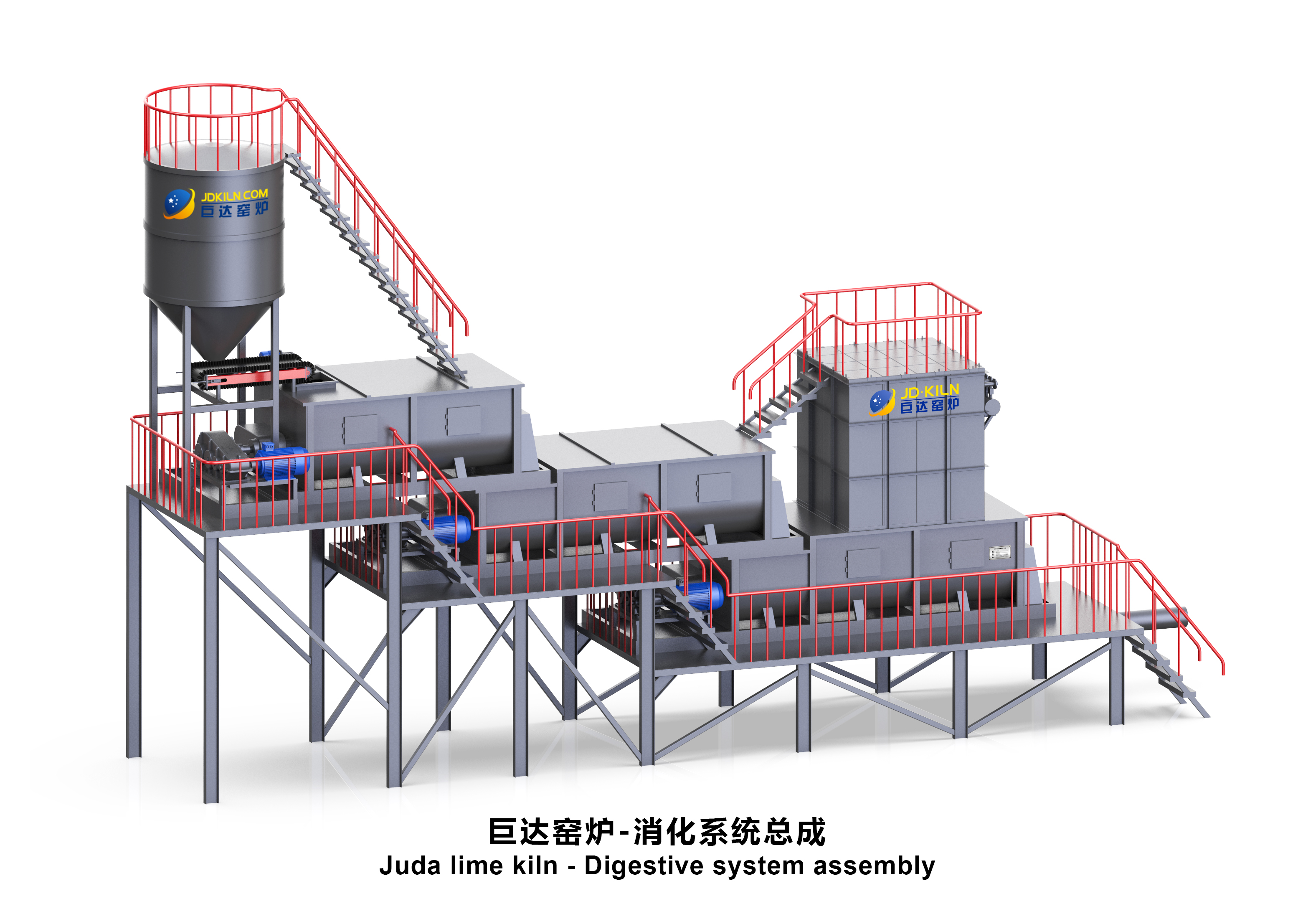

The core exothermic reaction: CaO + H₂O → Ca(OH)₂ + Heat. Our system injects water at precisely controlled ratios through multi-stage spray nozzles, ensuring complete hydration with zero unreacted quicklime.
Advanced PID-controlled water injection maintains optimal reaction temperature (90-105°C). Real-time moisture sensors ensure the final product achieves target humidity (≤1% free moisture), preventing over-hydration or under-hydration.

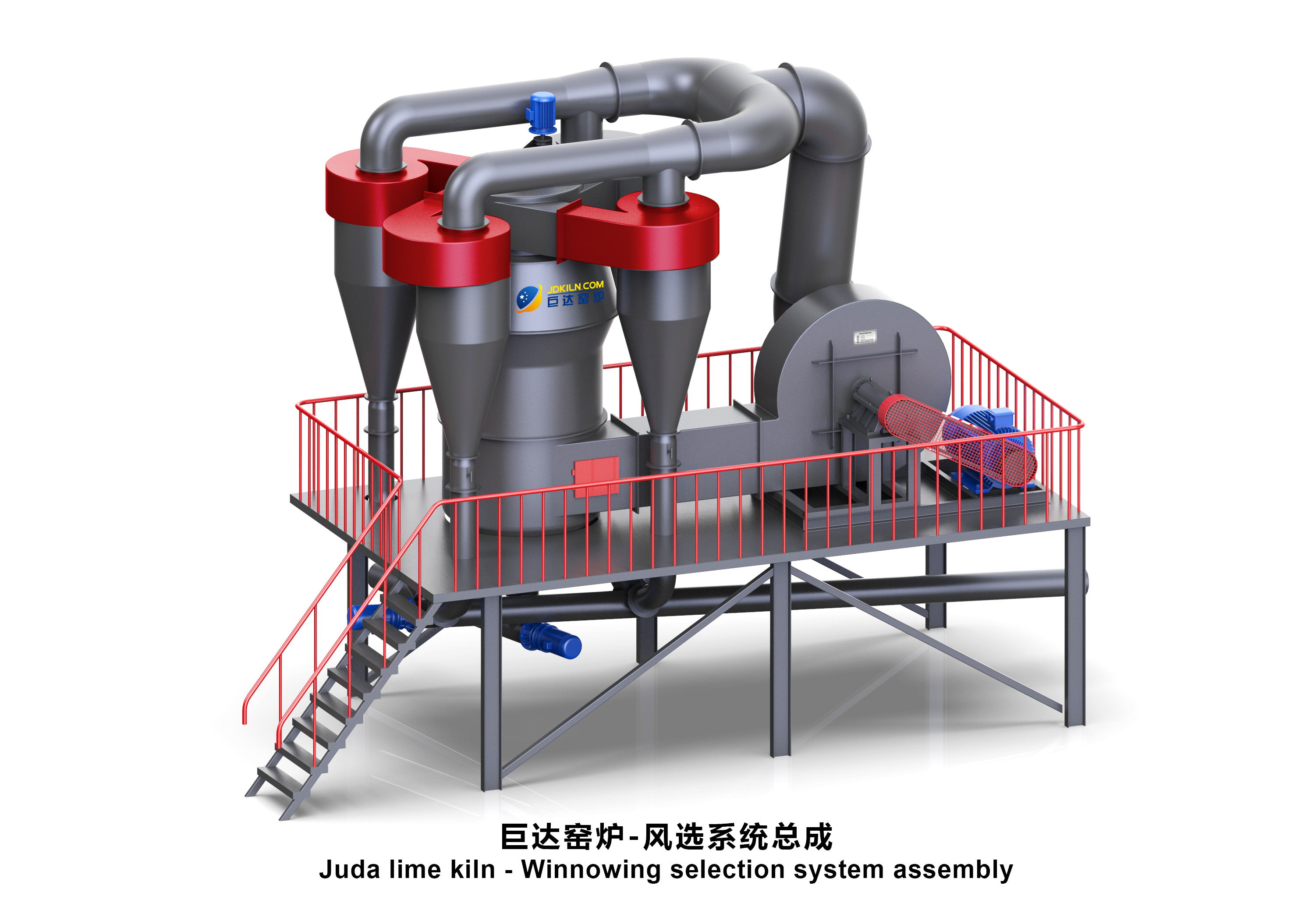

Hydrated lime passes through an integrated classifier that separates fine Ca(OH)₂ powder from residual grit. The finished product is collected via a dust-free pneumatic conveying system, ready for packaging or silo storage.
Engineering excellence that sets us apart
Multi-stage intelligent water injection with PID control algorithm. Water-to-lime ratio dynamically adjusted in real time based on feed rate and quicklime reactivity — achieving ±0.5% accuracy.
Integrated temperature monitoring at multiple points throughout the hydration chamber. Automated cooling/warming ensures the exothermic reaction stays in the optimal 90-105°C range.
Siemens PLC with touch-screen HMI enables one-touch start/stop, recipe management, and full process visualization. Remote monitoring via industrial IoT.
Patented multi-blade stirring mechanism ensures thorough mixing. Achieves ≥99% hydration conversion rate, producing Ca(OH)₂ with purity exceeding 93% and fineness up to 325 mesh (45µm).
Fully enclosed design with integrated pulse-jet dust collection system. Emissions well below 20 mg/Nm³. Compliant with the strictest environmental regulations worldwide.
Critical wear components in 304/316L stainless steel or high-manganese alloy. Designed for 24/7 continuous operation — typical service life exceeds 10 years.
Why our hydration technology delivers superior results
| Feature | Traditional Slaker | CRONUS Lime Hydration Line |
|---|---|---|
| Control System | Manual or semi-automatic | Fully automatic PLC with IoT remote monitoring |
| Water Ratio Accuracy | ±5% (manual adjustment) | ±0.5% (real-time PID controlled) |
| Hydration Efficiency | 85-92% | ≥99% |
| Product Purity Ca(OH)₂ | 85-90% | ≥93% (up to 96%) |
| Temperature Control | No active control | Multi-point real-time monitoring & auto-adjustment |
| Dust Emission | 50-100 mg/Nm³ | ≤20 mg/Nm³ |
| Capacity Range | Limited, single-size | 1-20 tons/hour, modular & scalable |
| Continuous Operation | Frequent stoppages | True 24/7 continuous duty rated |
| Wear Parts Life | 6-12 months | 3-5 years (SS 304/316L construction) |
| After-Sales Support | Limited or local only | 24/7 global support, remote diagnostics, on-site service |
Hydrated lime (calcium hydroxide) serves diverse industries worldwide

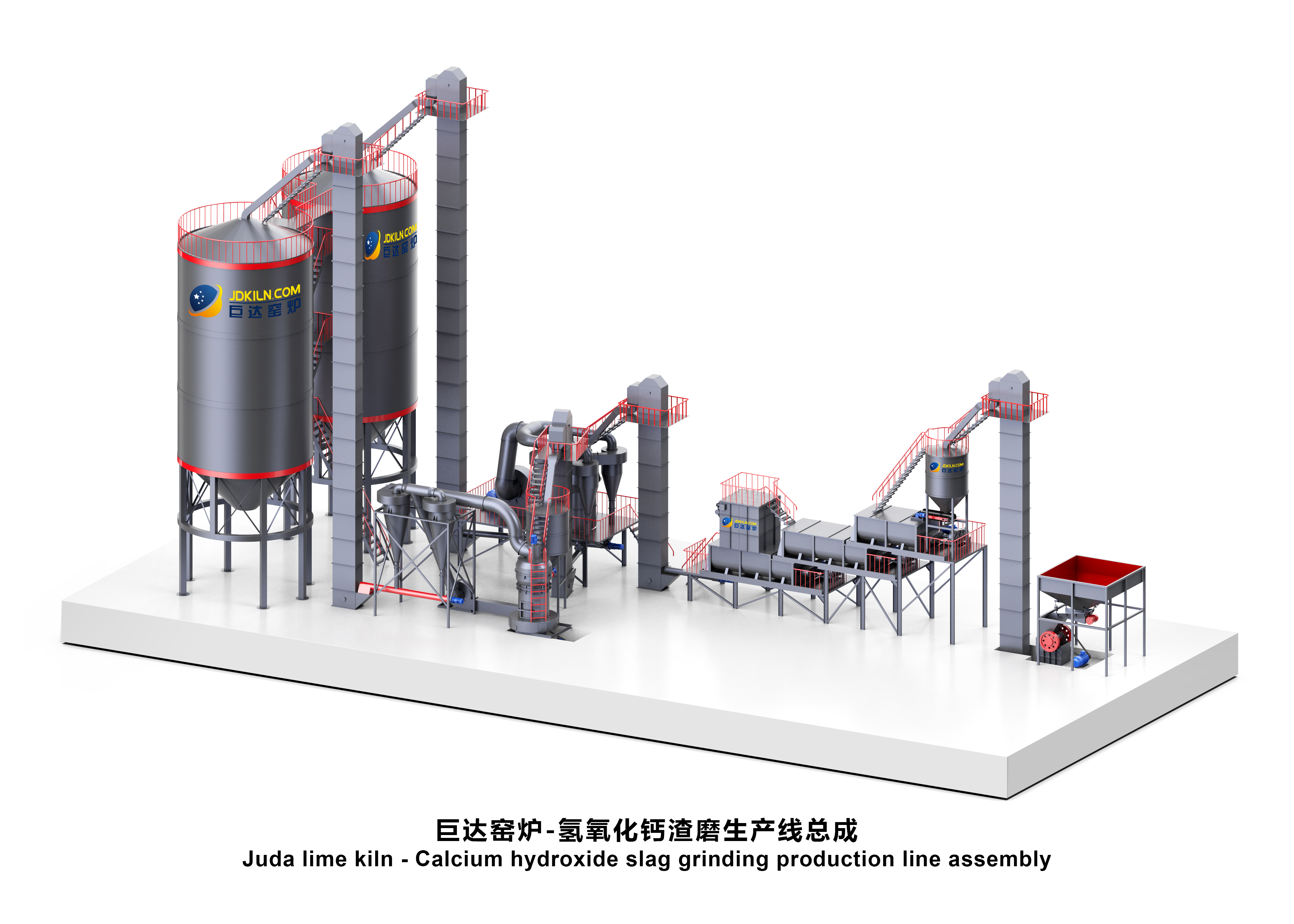

Autoclaved aerated concrete (AAC), mortar, plaster, calcium silicate board, and soil stabilization. Hydrated lime improves workability, water retention, and durability.
Flue gas desulfurization (FGD), wastewater treatment, acid mine drainage neutralization, sludge stabilization, and drinking water softening.

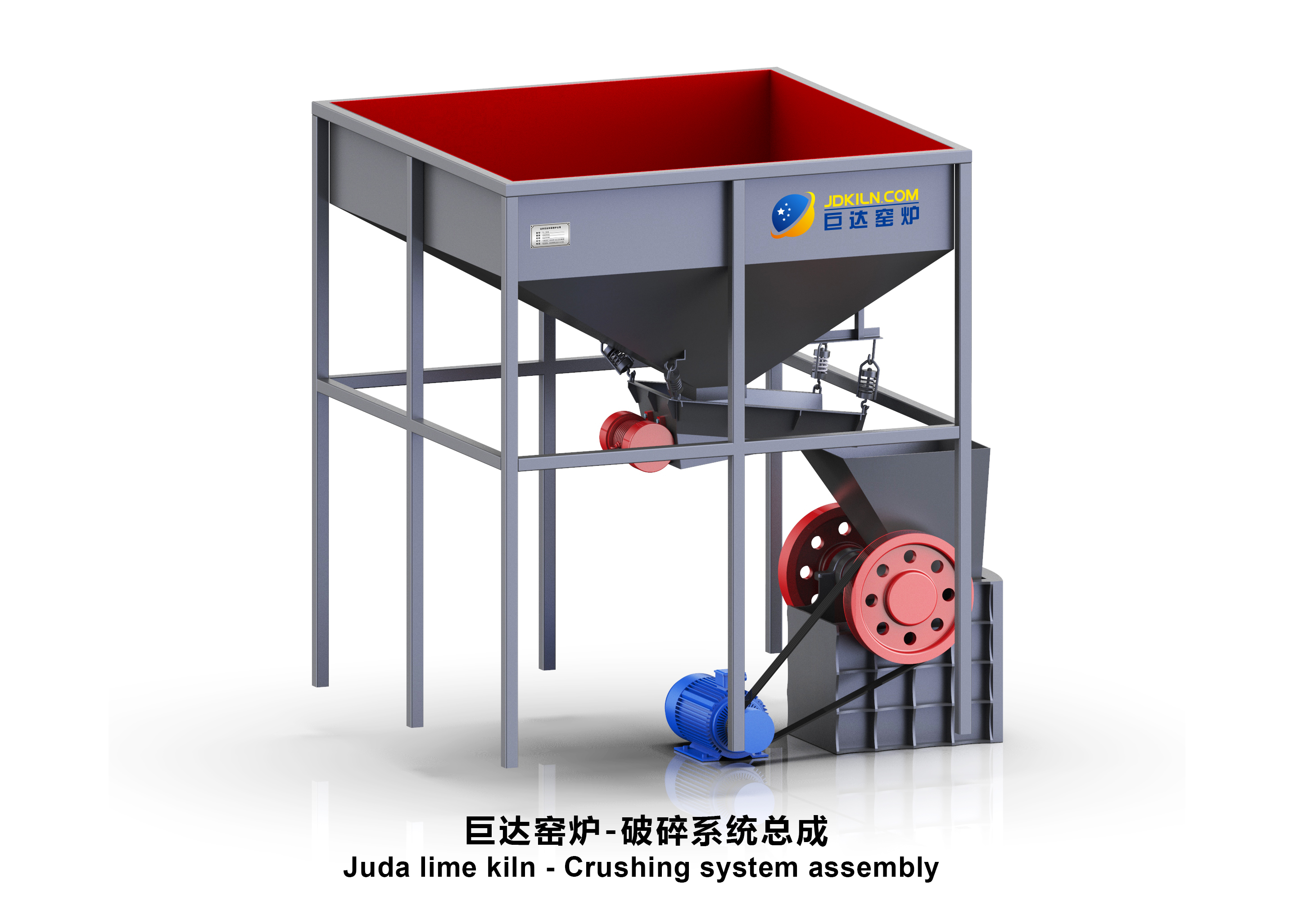

Flux agent in steelmaking, sinter plant additive, and non-ferrous metal processing. Removes impurities like phosphorus and sulfur from molten metal.
Production of calcium stearate, calcium hypochlorite, bleaching powder, epoxides, and various organic intermediates.
Soil pH amendment, animal feed calcium supplement, sugar refining, corn tortilla processing (nixtamalization), and food-grade acidity regulator (E526).
Kraft pulp cooking, bleaching, and paper filler coating. A key component in the sulfate pulping process and paper recycling.
Watch the CRONUS lime hydration production line operating at a customer site

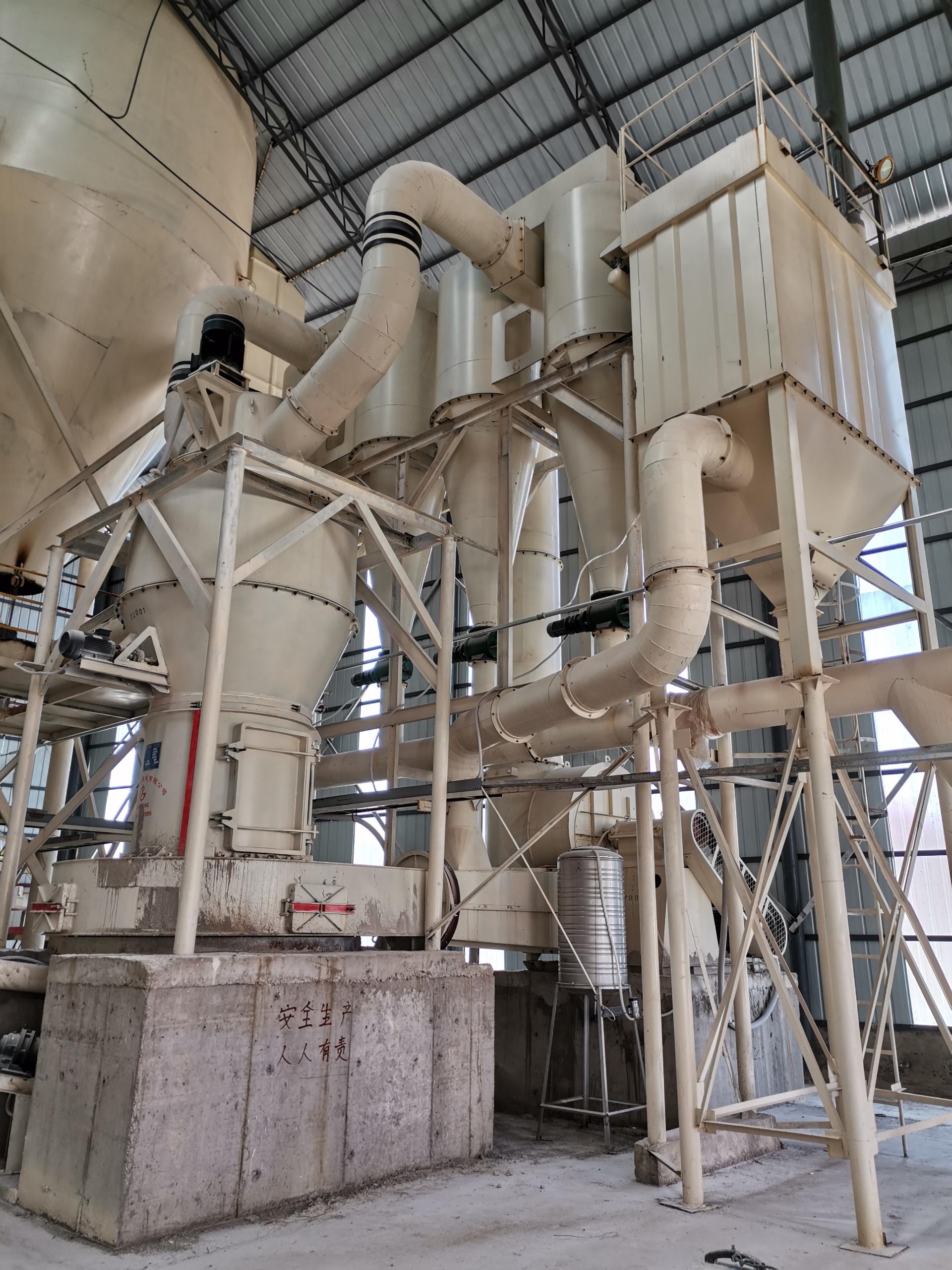

Trusted by customers across 30+ countries worldwide

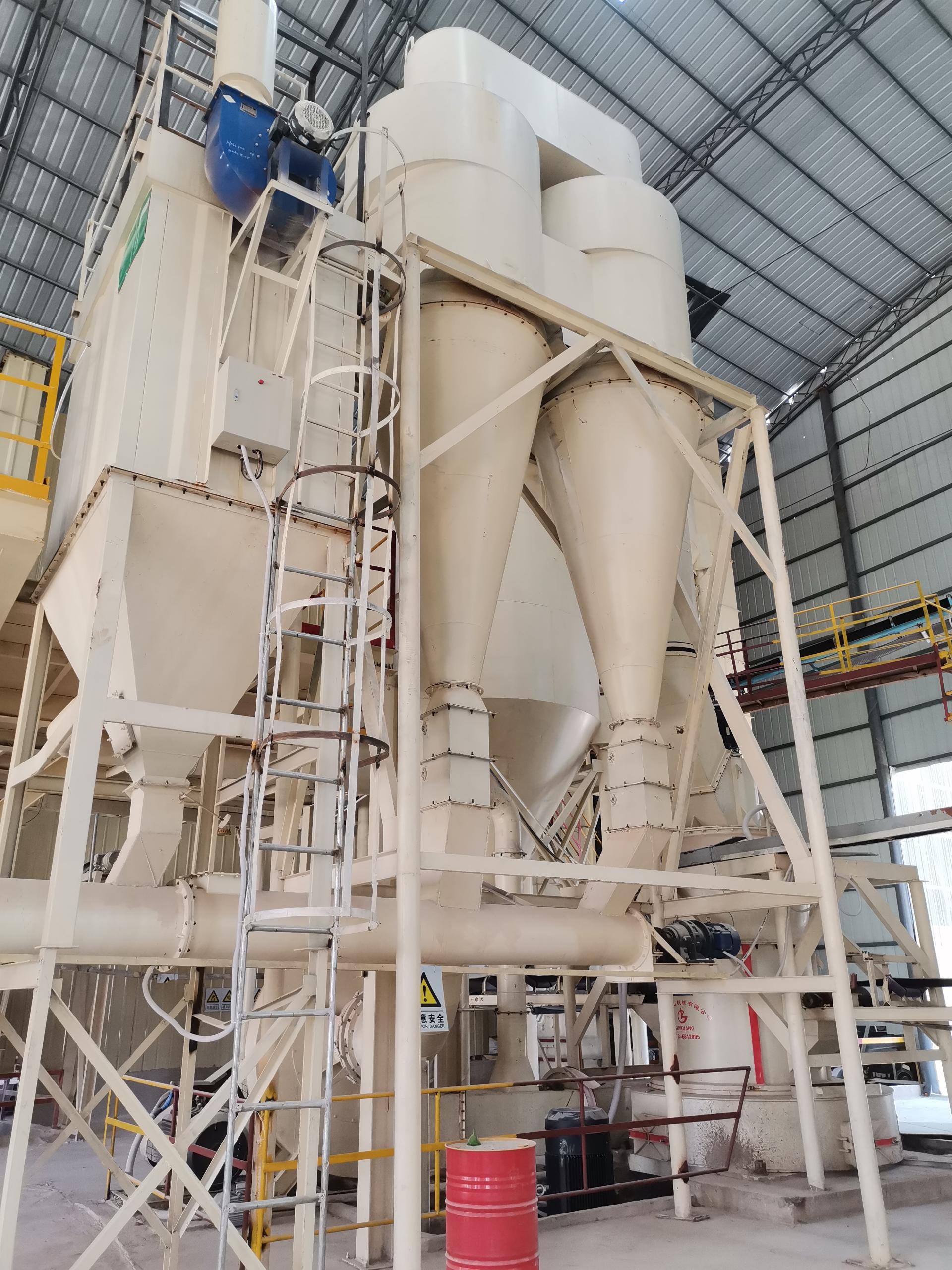

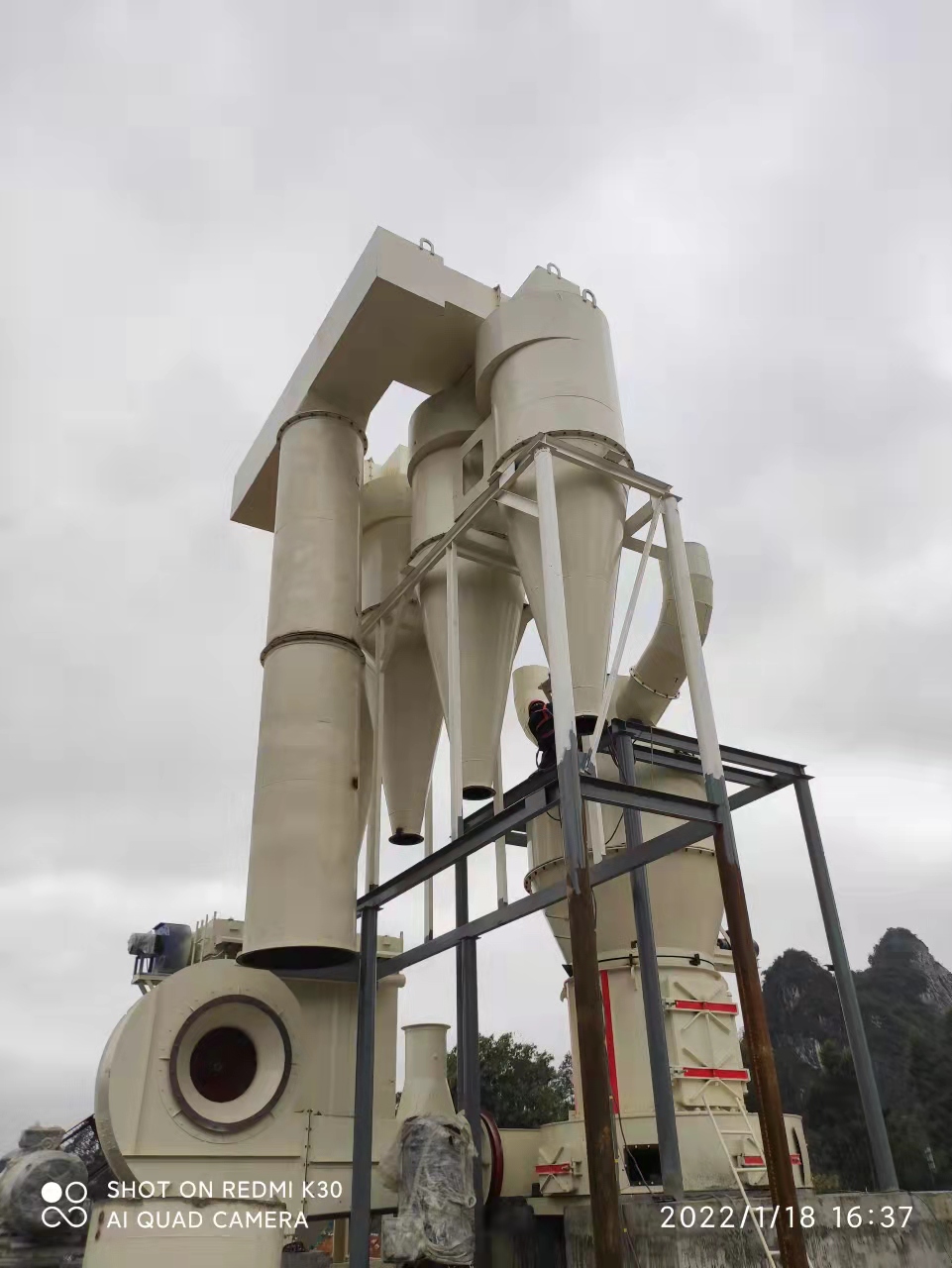

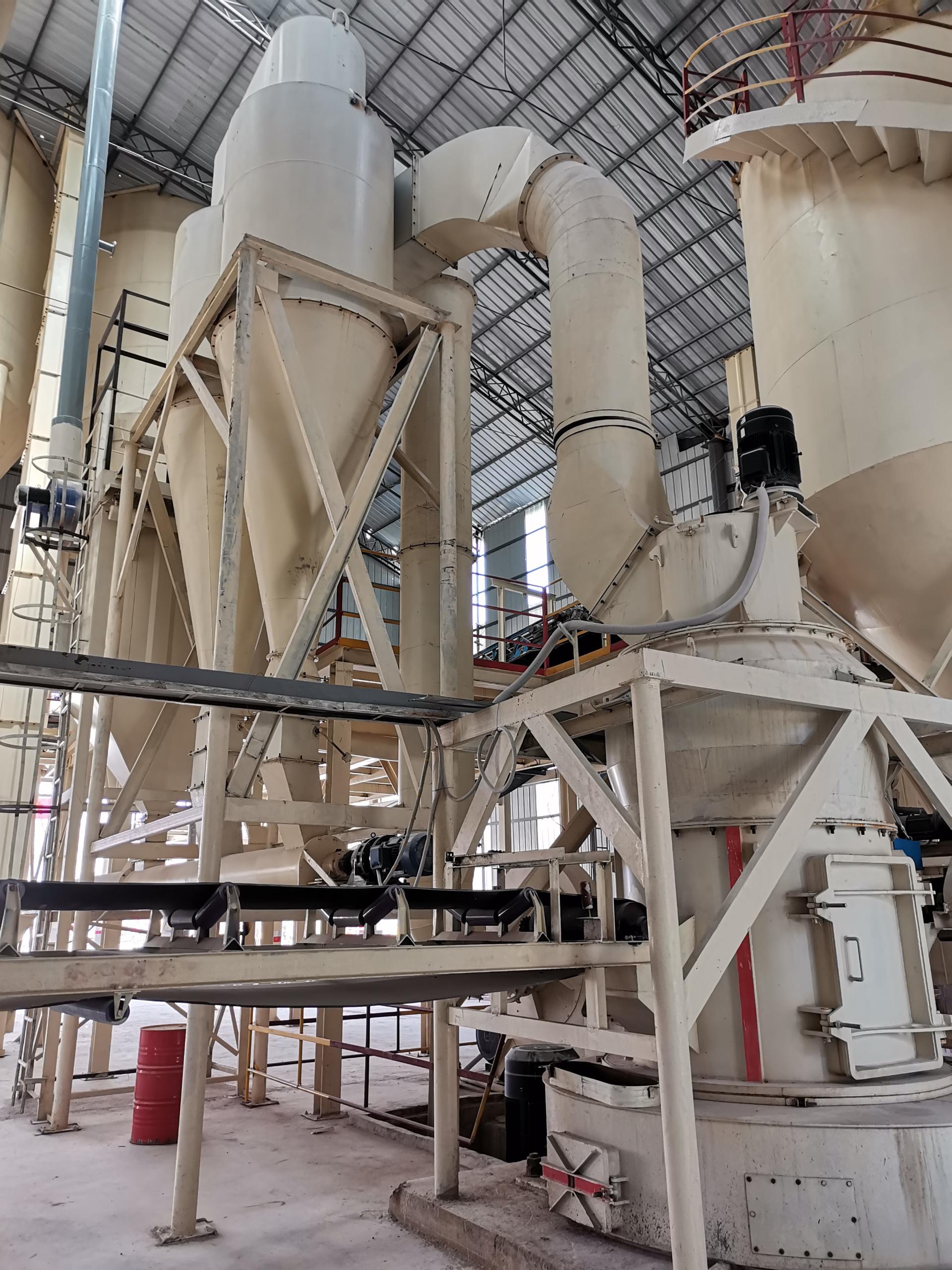

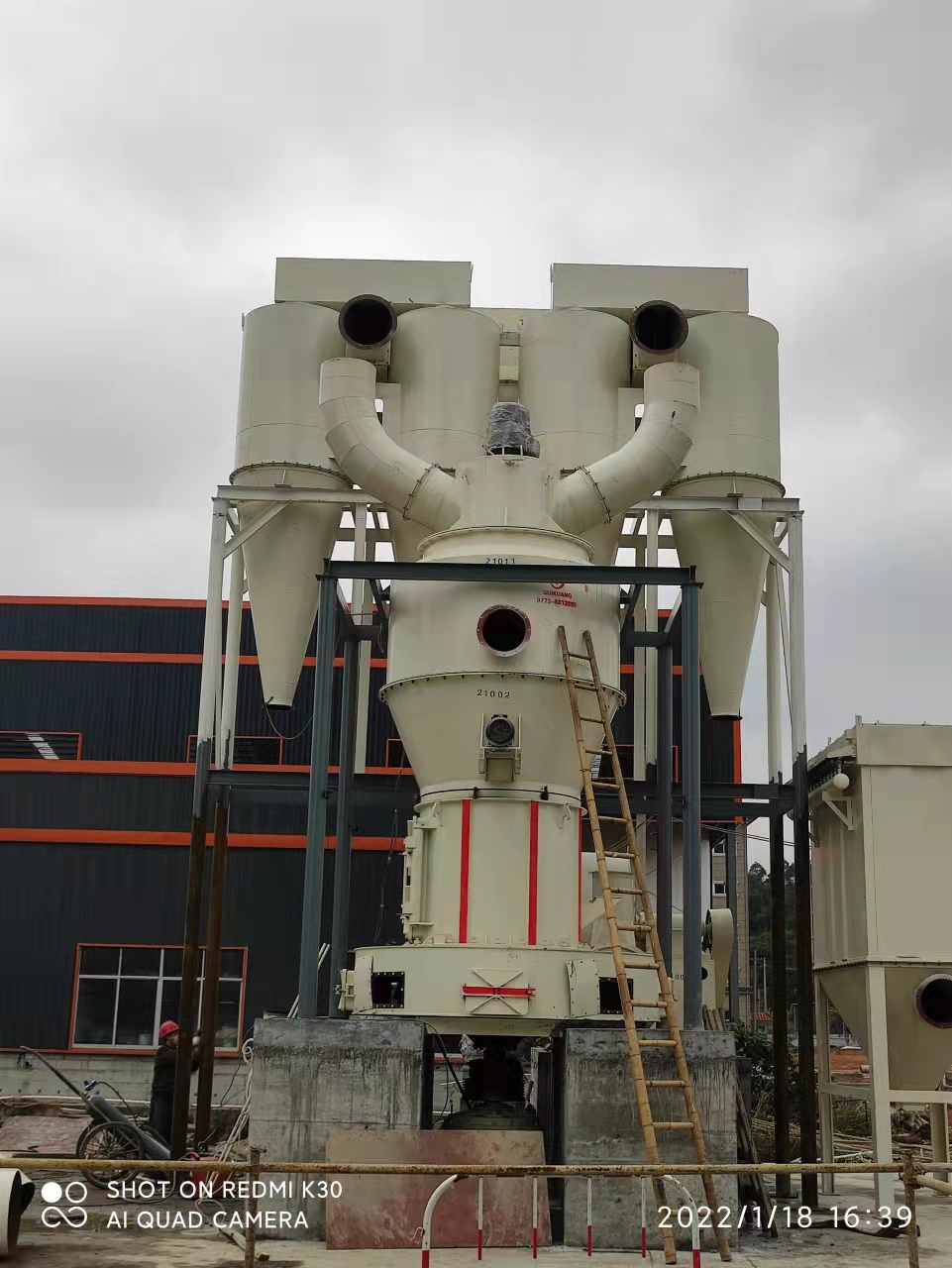

5 TPH fully automatic hydration system
10 TPH integrated grinding + hydration line

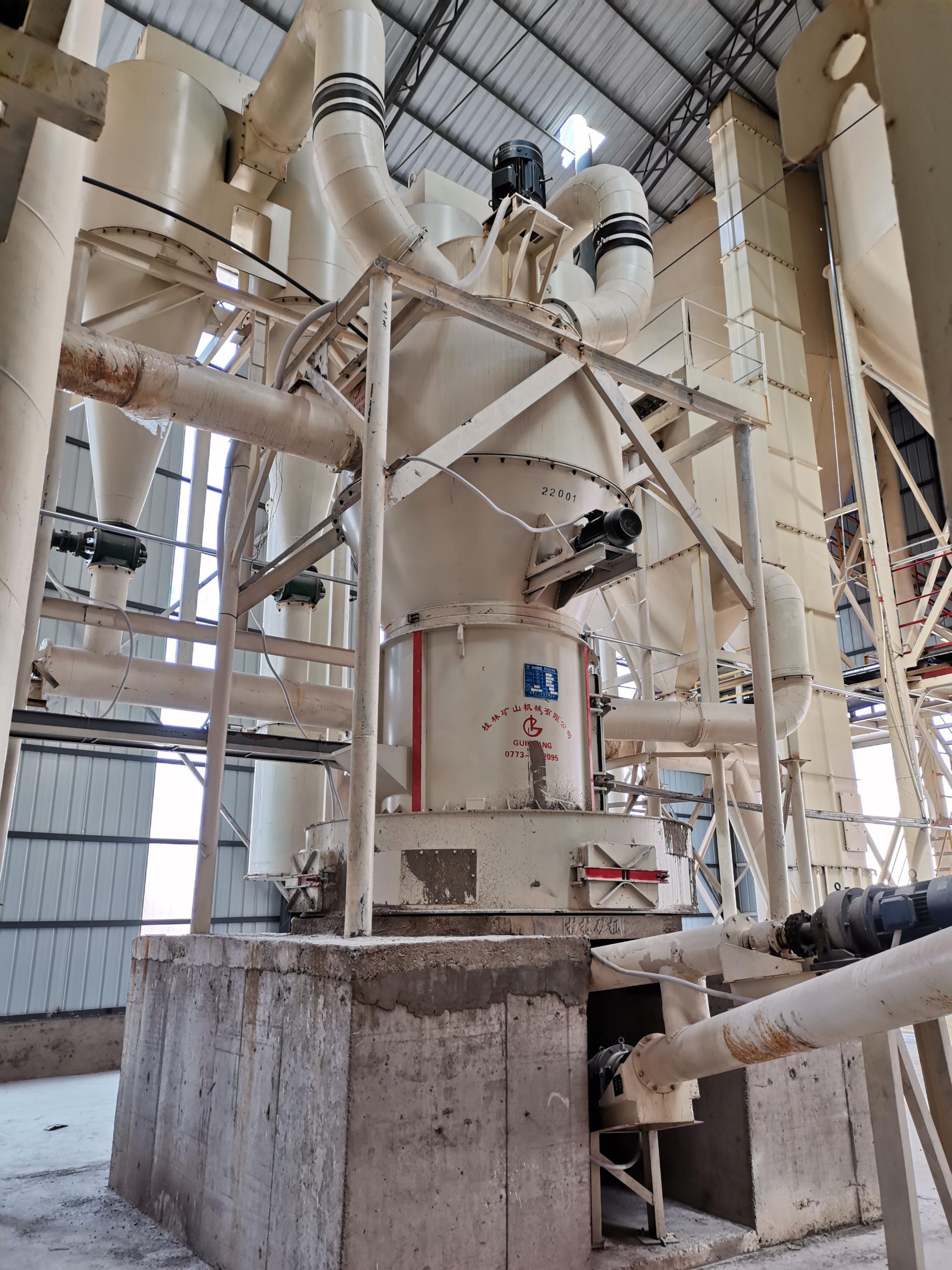

3 TPH slaker + classifier system
8 TPH for FGD & water treatment applications
6 TPH lime slaking system for AAC production
12 TPH high-capacity slaker for steelmaking flux
Everything you need to know about lime slakers and hydration equipment
Ready to discuss your lime hydration project? Contact us today for a free consultation and quotation.
